My 1997 2gb awd talon build

[godschylde777]

Ok, here goes....after getting ripped off by a local shop I have decided to build my own car, and thus far it has been a success. What I don't know I Google, and I have paid close attention to detail, and tried to build a dsm, not only I could be proud of but we all could. Some thing you may like others you may not, but one way or another feel free to comment good or bad I welcome it.

ok that was as close as I could come to the beggining.



[godschylde777]

Yes that is a full wiretuck, the fussbox is now in the glove compartment.



[godschylde777]



[godschylde777]

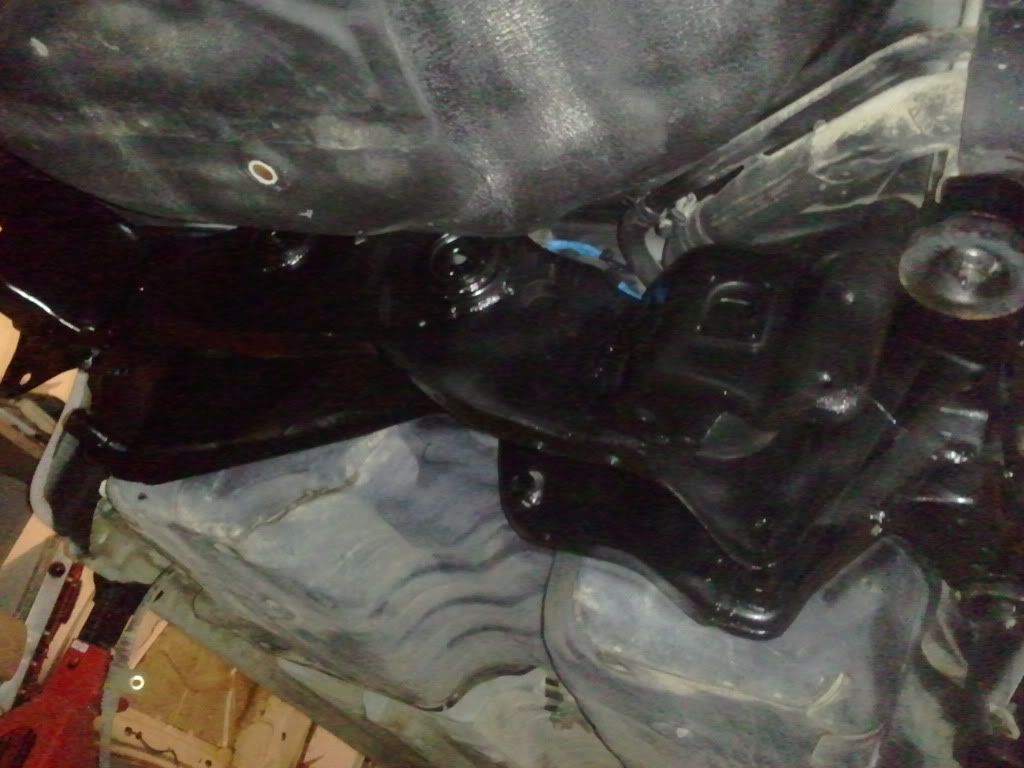

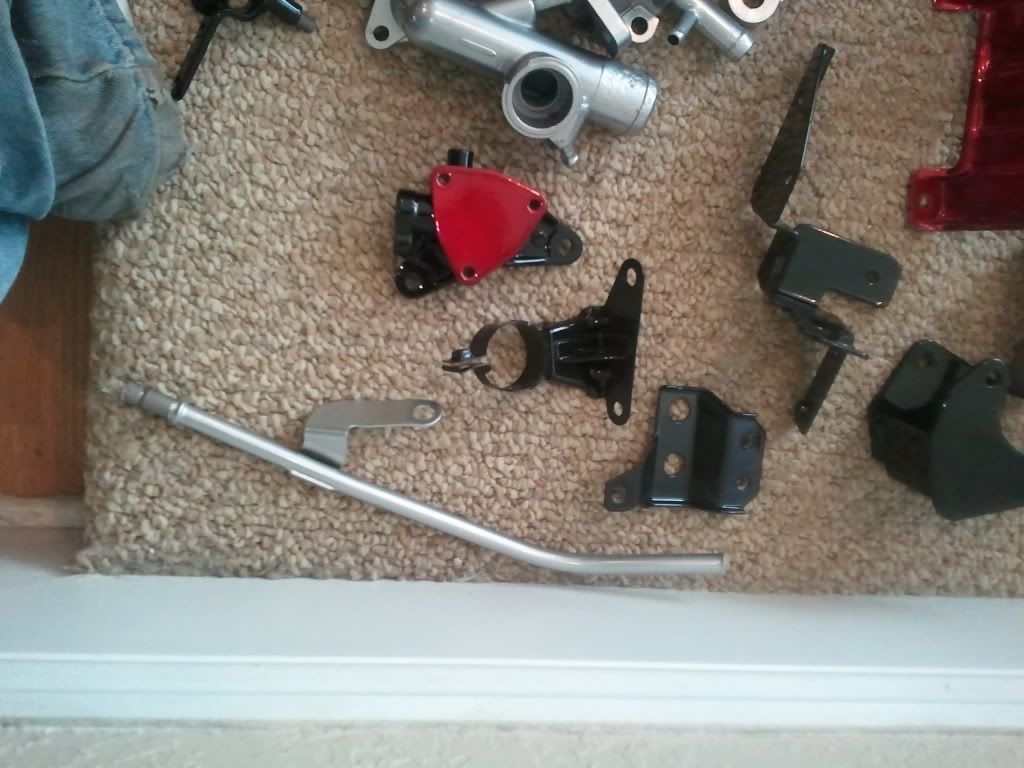

I removed the rear and front cradles and sanded and painted them, as well has resleeved all of the abs wires.



[godschylde777]

More wiring



[godschylde777]

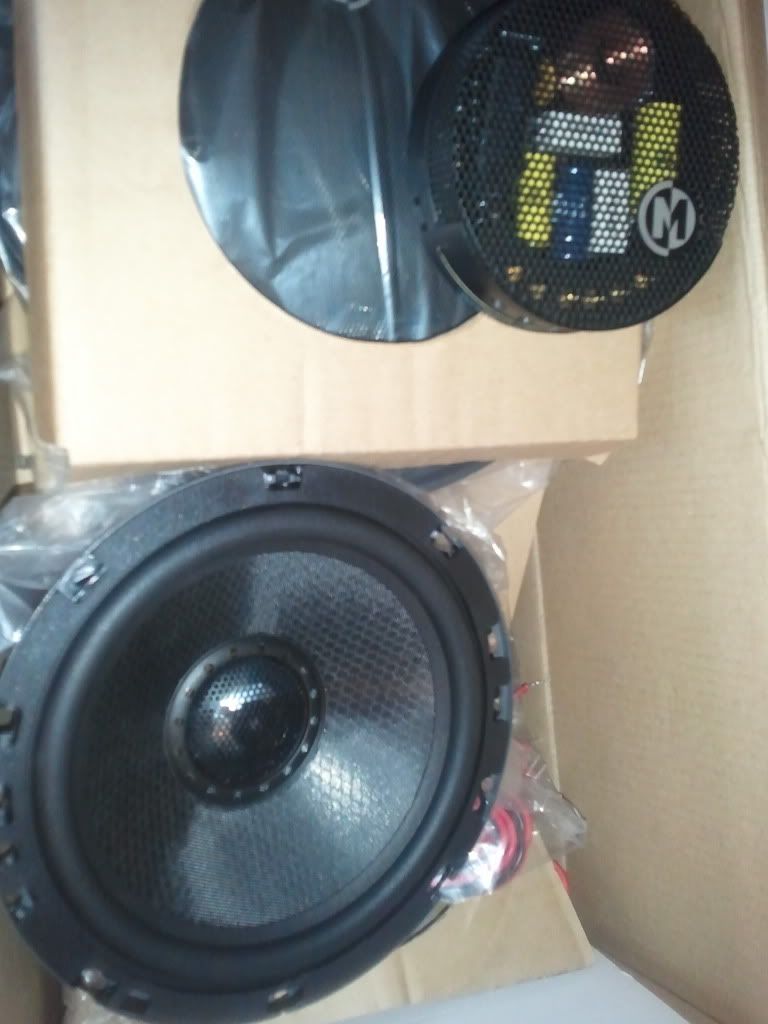

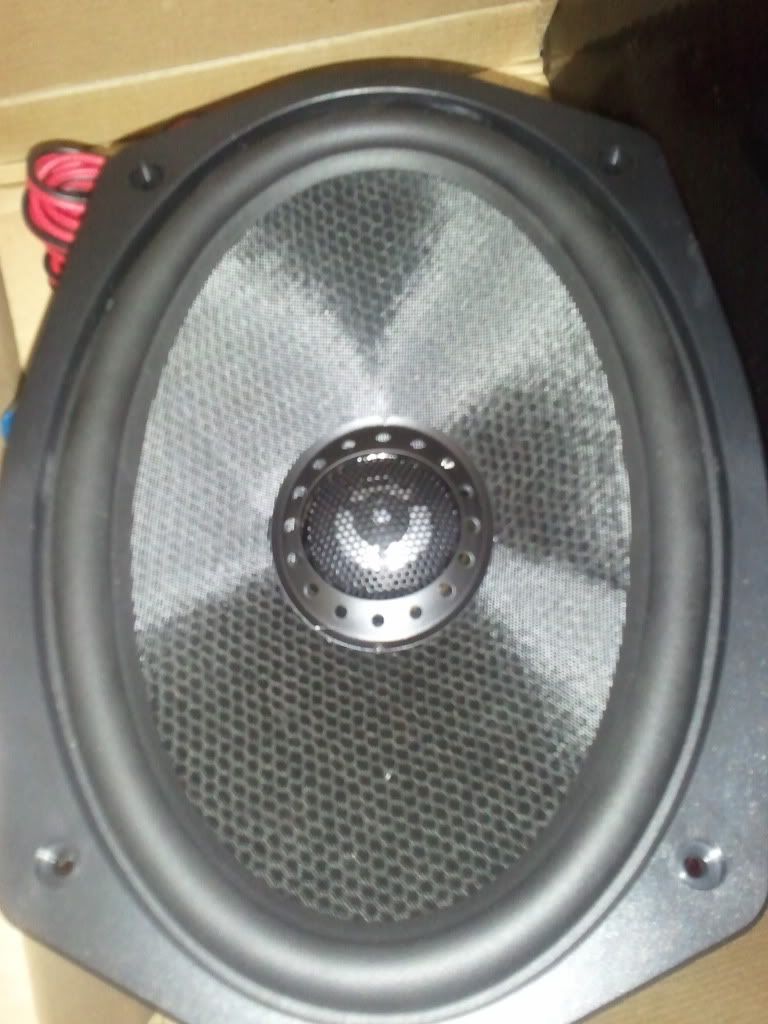

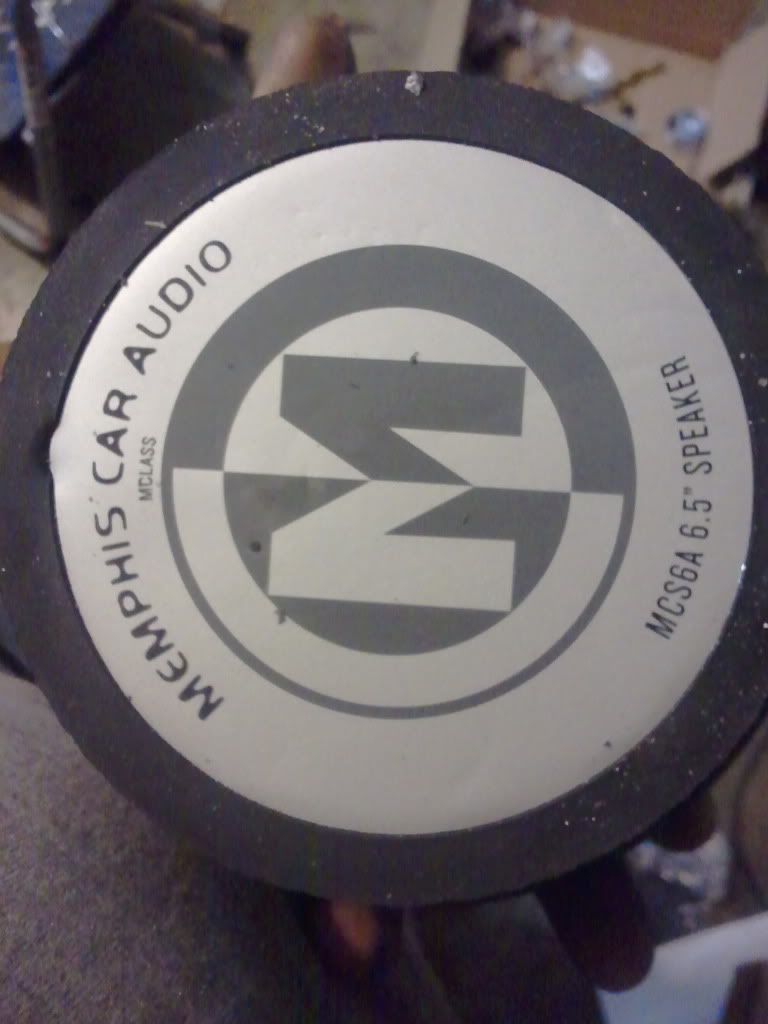

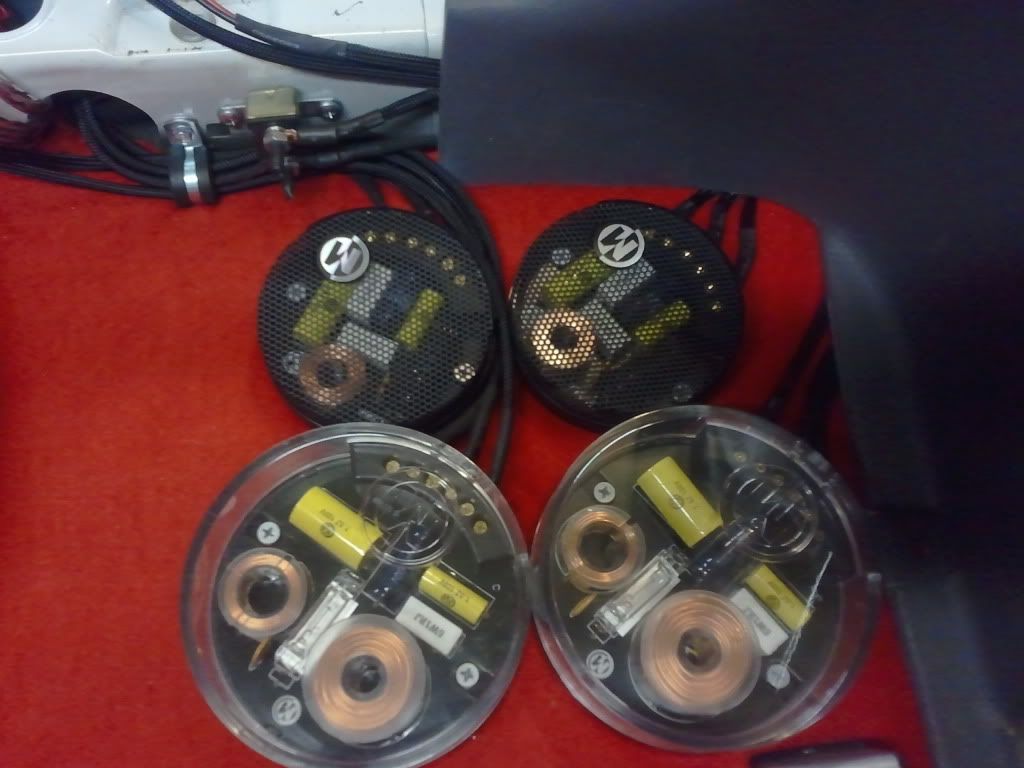

This is my memphis kit set me back a pretty penny but it was well worth it.



[godschylde777]

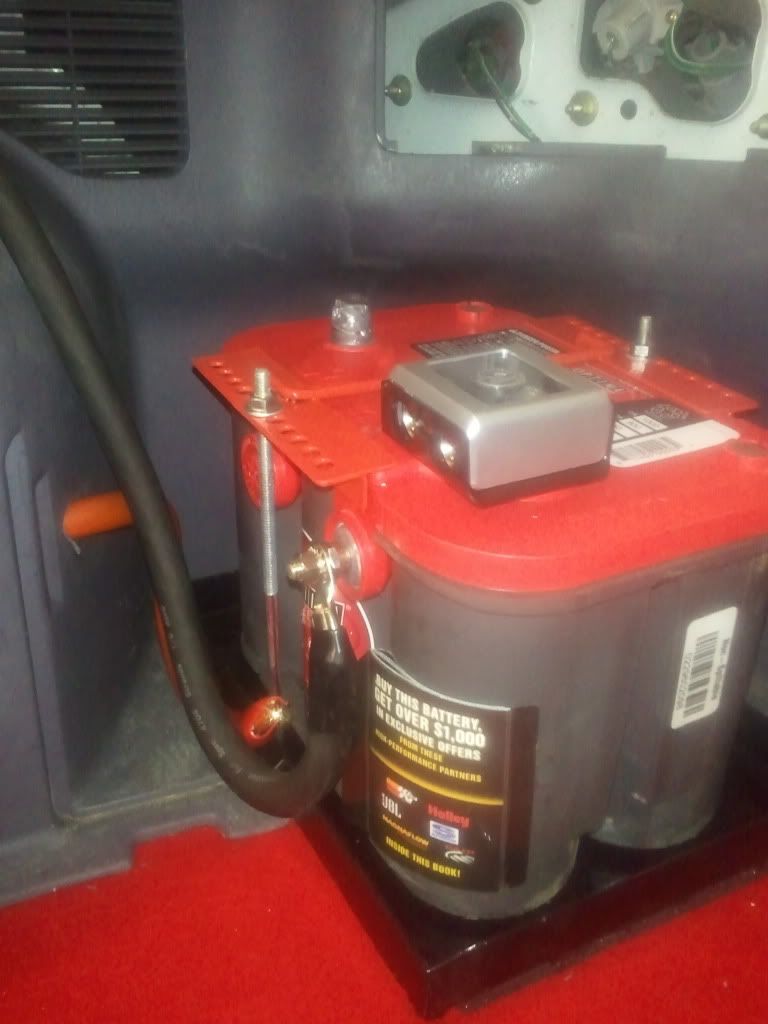

this is the start of me tryin to start getting power to the chassis, it turnes out really nice, you will see in later pictures.



[godschylde777]

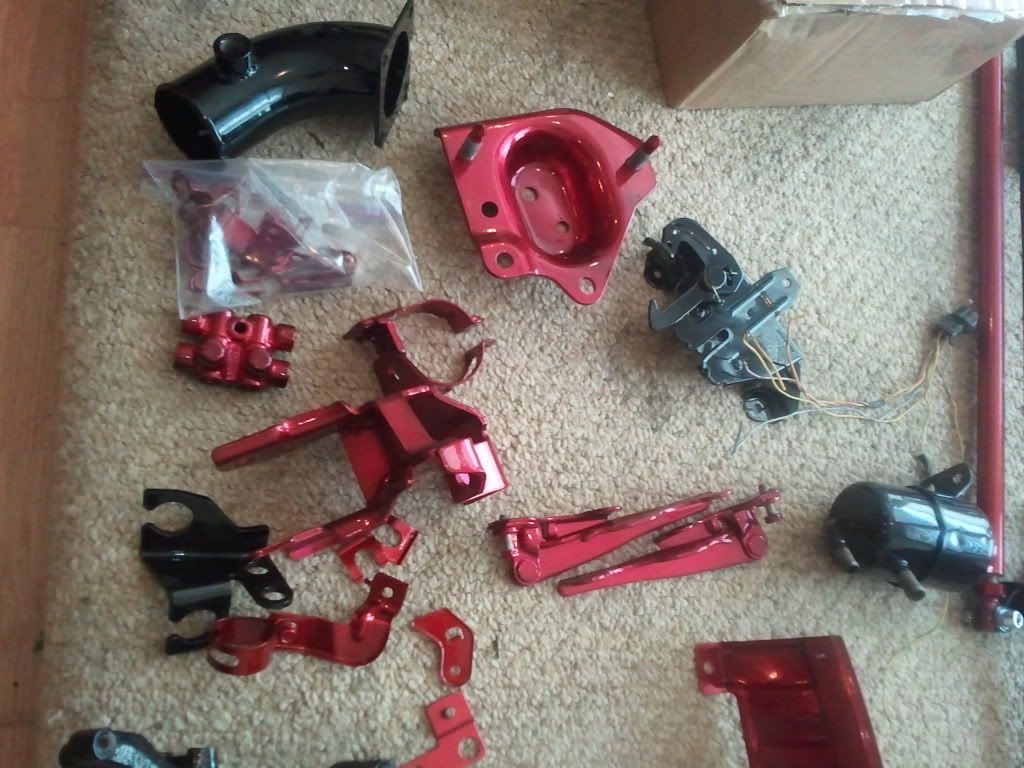

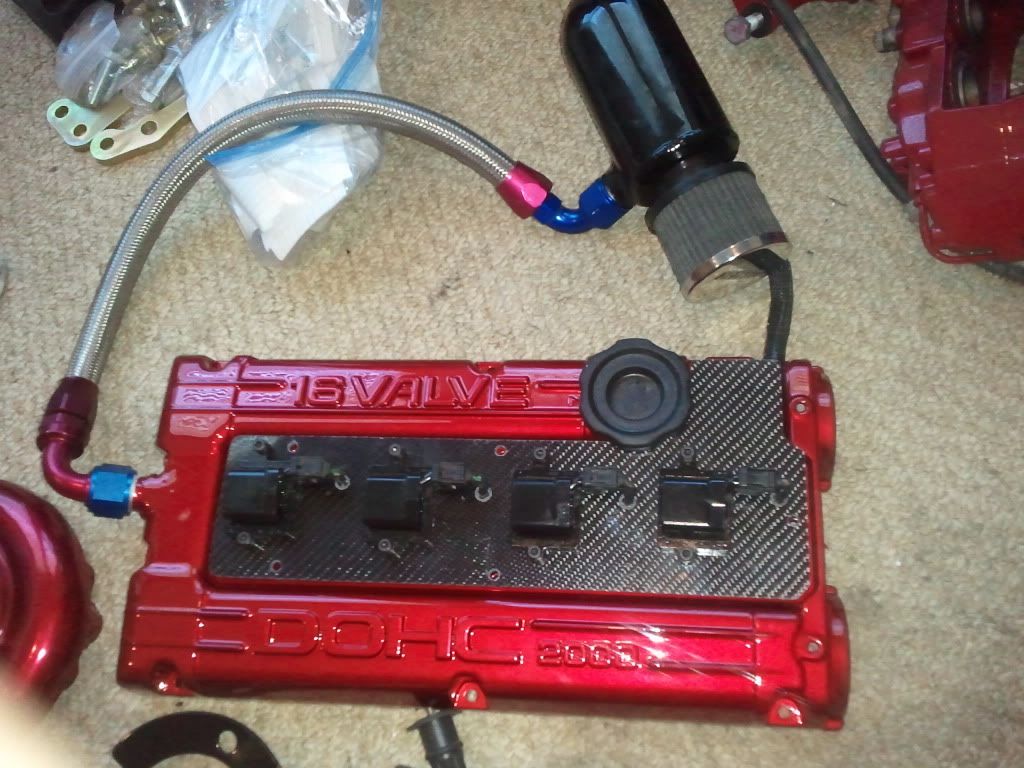

So now you will see parts start to trinkle in, the UPS guy and I are on firstname basis.



[godschylde777]

More wiring

What your looking at is how i wanted to control the wiring under the dash, so I made harnesses for everything, and instead of cutting into different wires for power and ground, I placed distribution boxes under the dash for ground and power.



[godschylde777]

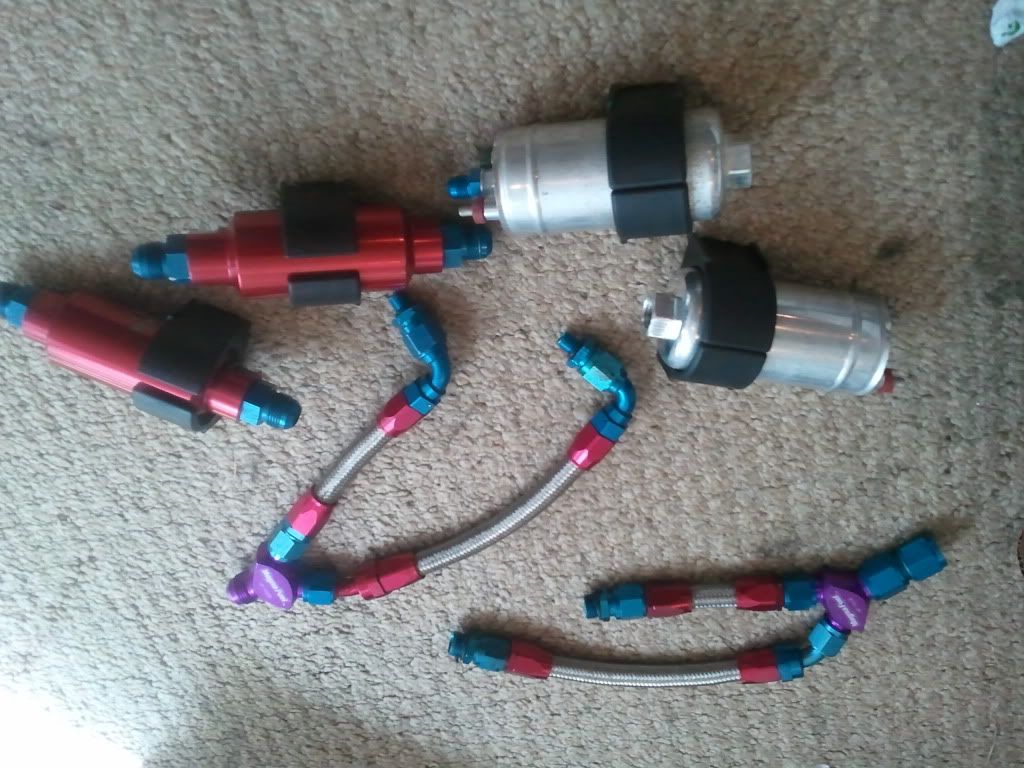

2 of these will be used

plenty more, Ill post tomorrow.



[godschylde777]

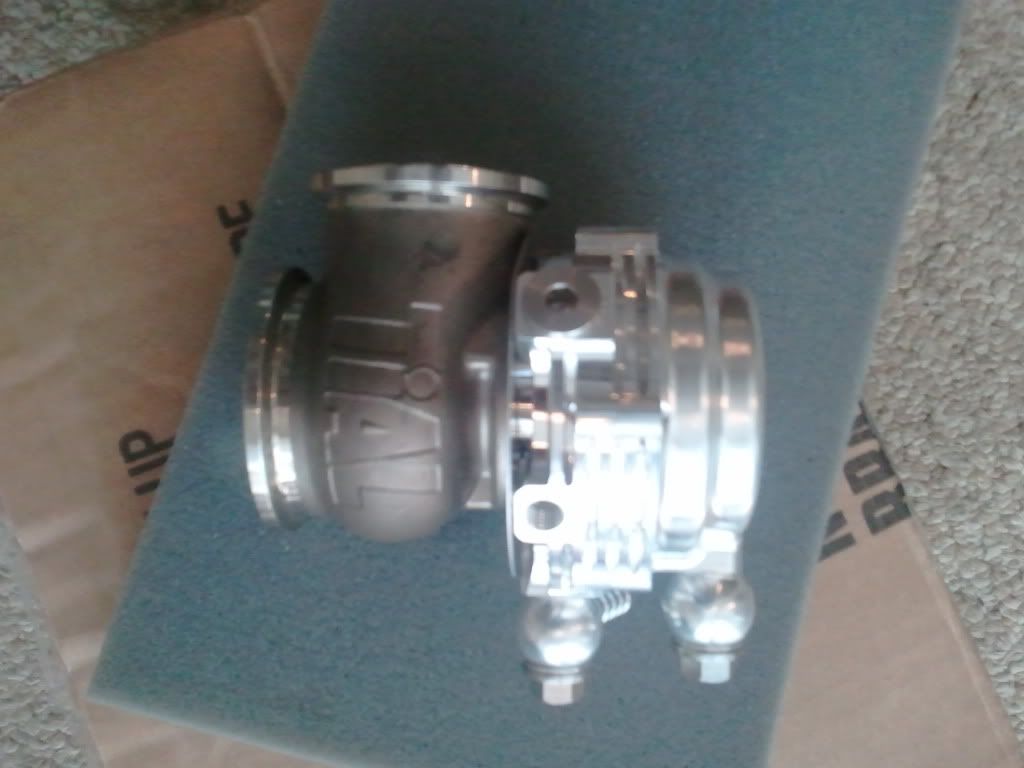

This is a one-off, Got it from a guy who had it made by shearer



[godschylde777]



[godschylde777]

lil somthing for the haters



[godschylde777]

I have started the process, I will post pics of it later.



[godschylde777]

captain has to have a place to sit



[godschylde777]



[godschylde777]

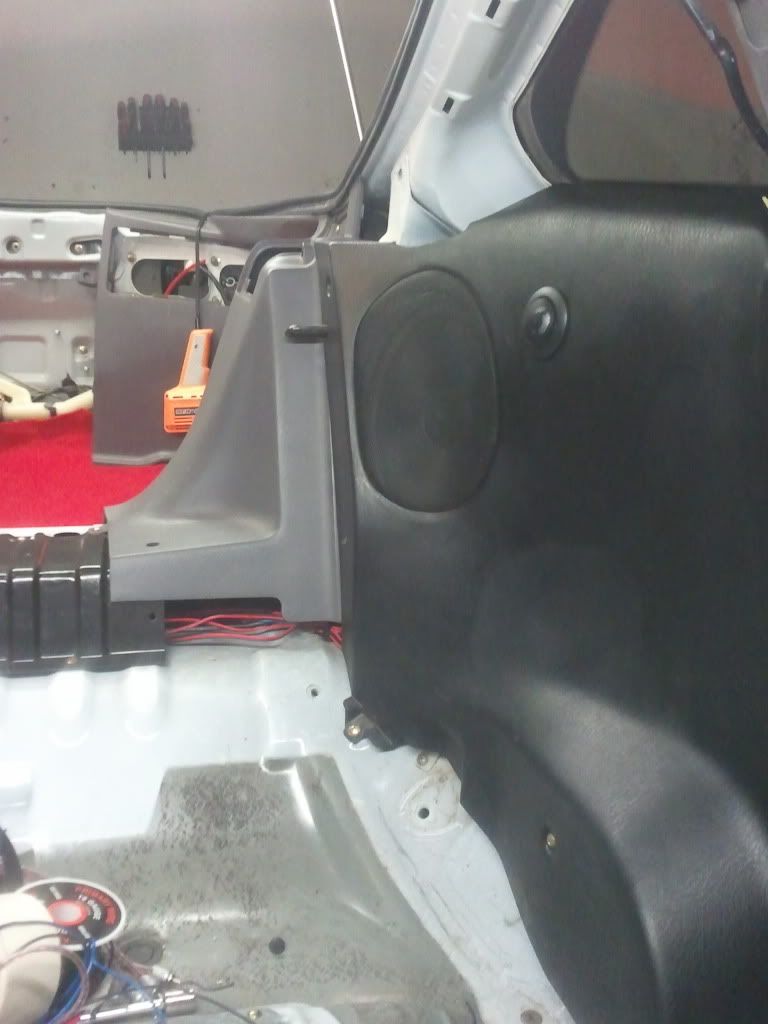

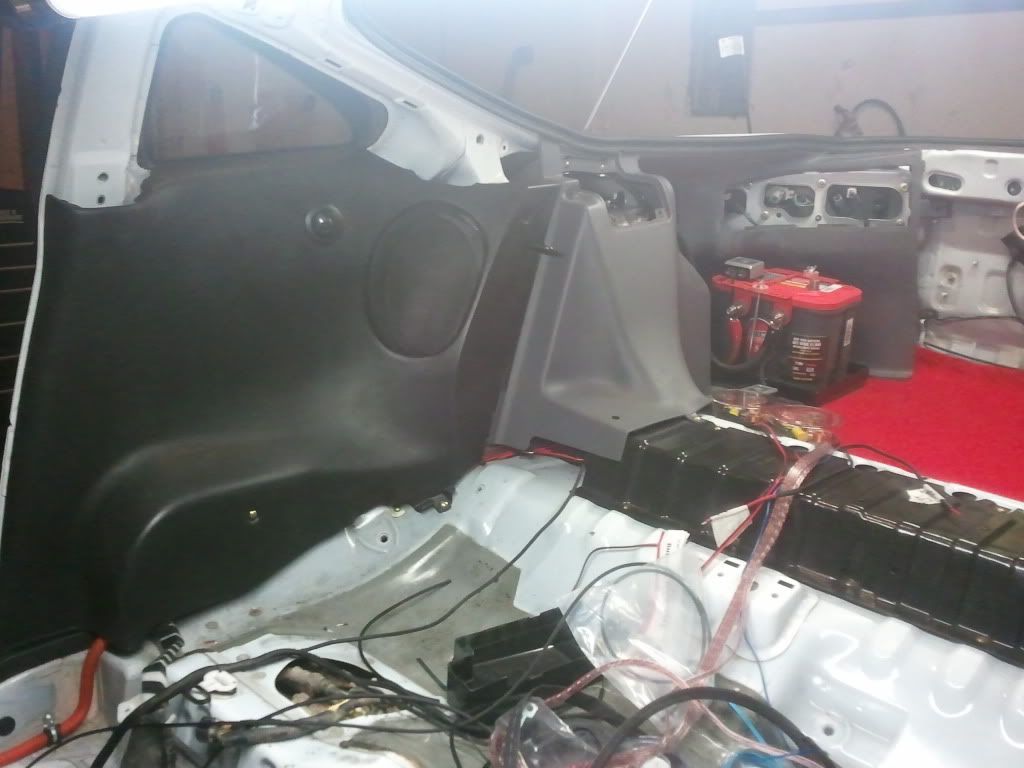

I took my time and ran all wires safely, aswell as all wires in rear are loomed.



[godschylde777]



[godschylde777]



[godschylde777]

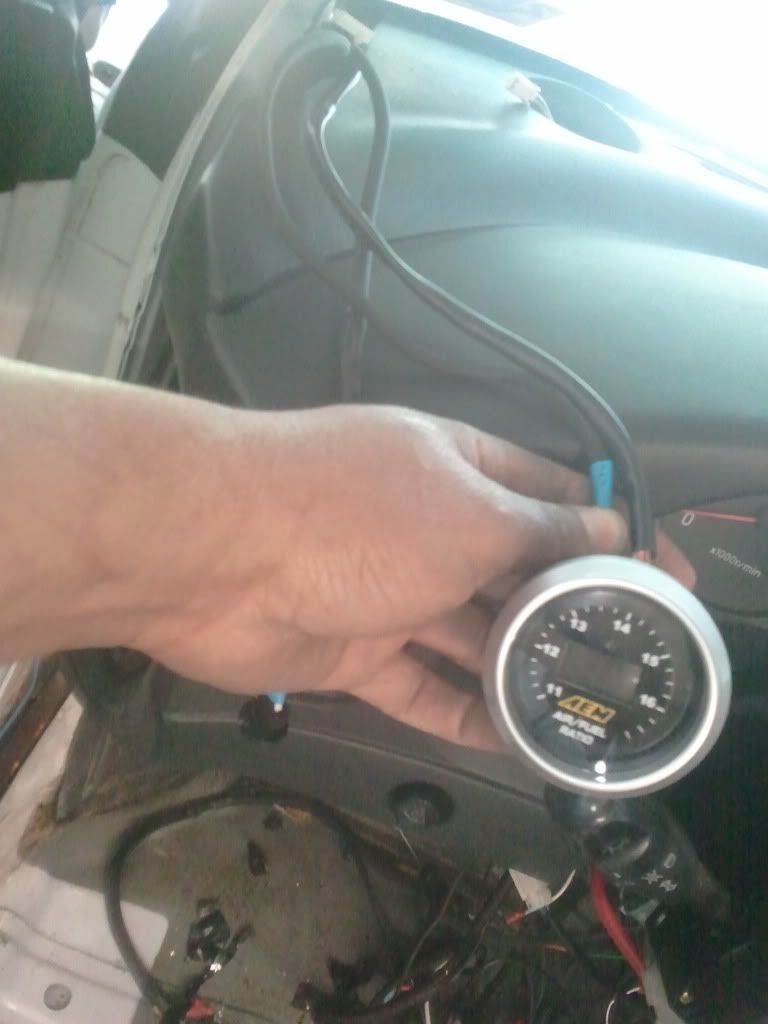

I even made a harness for the gages.
